Operational resource relationships

Select a resource and press g to see what it depends on and what depends on it — owner references, label selectors, config/volume mounts, routing backends, node scheduling, and storage bindings, joined from the resources korvid has already listed. It answers "what breaks if I delete this?" and "why is this Pod using that ConfigMap?" without a second tool.

This is a read-only, metadata-only view: it never issues a write, and no Secret data/stringData, container command/args, or literal environment variable value is ever retained in a relationship fact, the graph, or anything the screen renders (see Deliberate limits).

The two sections separate dependencies from dependents; every row preserves relation direction, confidence, state, and source field.

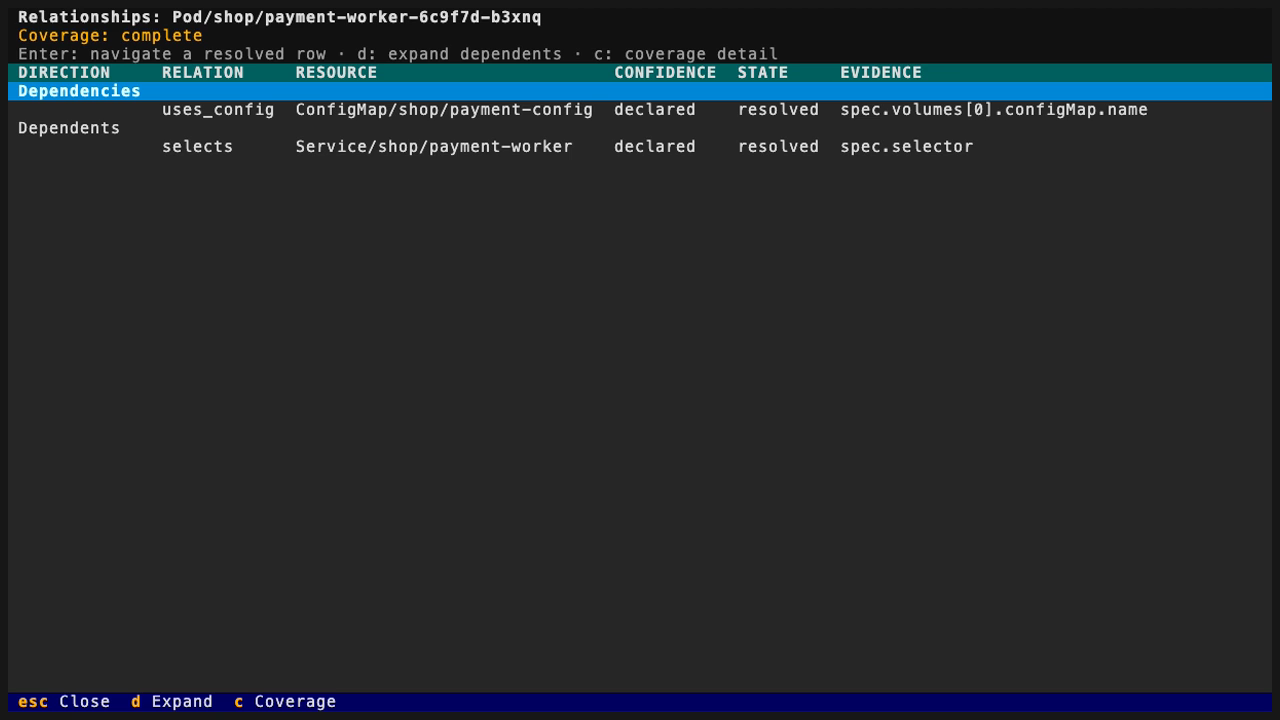

Read the graph

With a resource selected in any discovered (non-synthetic) table, press g. Korvid resolves the exact root identity, runs a bounded set of LISTs (see Coverage is evidence, not completeness), and splits the result into two panes:

• Dependencies — what the root declares or exhibits a relationship to. Deleting one of these can break the root.
• Dependents — what declares or exhibits a relationship to the root. Deleting the root can break one of these.

Every edge is directed dependent → dependency, fixed regardless of which pane a relation kind tends to show up in: a ReplicaSet is owned by (dependent on) its Deployment, so owned_by appears as a Dependents row on the Deployment. Relation kinds are read from a fixed catalog — owner references, selector matches (selects, managed_by, protected_by), routing backends (routes_to), config/volume references (uses_config, uses_volume), node placement (scheduled_on), and volume binding (bound_to) — not an open-ended inference engine; a relationship korvid does not model (a custom controller's own reconciliation logic, say) never appears here.

A four-column legend covers how to read any row:

Direction	Source	Resolution	Confidence
Dependencies	a manifest field path, e.g. spec.volumes[0].configMap	resolved / missing / invalid against what korvid listed	declared — read straight from the manifest
Dependents	live cluster state, e.g. an EndpointSlice targetRef or a Pod's nodeName	resolved / not indexed against the graph's own node set	observed — read from current state, not authored config

A third confidence level, inferred, is reserved for a future heuristic-derived fact; no relation kind uses it today. missing means "not found among what korvid could see," never "does not exist" — see Coverage is evidence, not completeness. invalid marks a cross-namespace routes_to reference that no exact Gateway API ReferenceGrant authorizes (see Cases that need care).

Direct edges and bounded expansion

By default the screen shows only the root's direct dependencies and dependents — one hop. Press d to toggle a bounded transitive expansion of dependents: a breadth-first walk outward from the root, capped at max_depth = 5 hops and max_nodes = 500 visited resources shared across direct, expanded, cycle, and repeat rows by one counter, so no single category can silently grow the table past the cap. No resource is walked twice: a genuine loop back to an ancestor is labelled Dependents (cycle) and stops there, while two independent paths converging on the same resource are labelled Dependents (repeat) and shown once, not expanded again. When any row category is capped, a trailing (capped) row states how many rows were omitted and why — a bound is disclosed, never silently applied.

Coverage is evidence, not completeness

Before joining any facts, korvid LISTs a fixed catalog of resource kinds plus every Gateway API *Route and ReferenceGrant the cluster's own discovery reports. Each source records its own coverage state: complete, partial (intentionally scoped, for example a cross-namespace follow-up LIST), or one of the failure states forbidden, unavailable, failed, capped (see Deliberate limits for the numeric caps). Press c to see the per-source detail.

A graph built from incomplete coverage can only prove a dependency exists, never that one does not — an incomplete graph cannot prove absence. If a Secret LIST is forbidden, a Pod's uses_config edge to that Secret renders as missing, but that means "not found among what korvid could see." The screen's top line always states whether coverage as a whole is complete or incomplete, and any missing/invalid resolution under incomplete coverage should be read as "unknown," not "absent."

The root itself can also be absent from an otherwise-complete snapshot — deleted or recreated with a new UID after the table row was read. The banner then says so literally ("This resource is not present in this snapshot …") rather than letting two empty sections read as "no relationships."

Cases that need care

• Stale owner references. A UID-carrying reference (an owner reference, an EndpointSlice targetRef, a PV's claimRef) is resolved by UID first: recreating a Deployment produces a new UID, so a ReplicaSet still carrying the old UID resolves missing rather than silently reattaching to the new Deployment by name. A reference is only matched by name when its shape never carries a UID at all (a ConfigMap envFrom, for example).
• Cross-namespace routing (ReferenceGrant). A routes_to reference naming a different namespace than its subject is invalid unless an exact Gateway API ReferenceGrant in the target namespace authorizes it — matching from group/kind/namespace and to group/kind/name with no wildcard credit. Its presence alone is never sufficient; every field must match. Only routes_to honors ReferenceGrant — every other cross-namespace reference is invalid unconditionally.
• Snapshot misses. A cluster-scoped kind (Node, PersistentVolume) is always listed cluster-wide; a namespaced kind is scoped to the pane's current namespace, plus any namespace a routes_to reference explicitly names. Press 0 for the all-namespaces view before opening the graph if a dependency in another namespace matters.

Navigate or preview impact

• Enter on a resolved row jumps to that resource's normal view — the same jump used elsewhere in korvid — with the cursor on the object; Esc there returns to the graph. Enter on an unresolved (missing/invalid) row explains why it cannot be navigated instead.
• d toggles the bounded dependent expansion; c toggles coverage detail; Escape/q closes the view.

The same snapshot also feeds an advisory, graph-derived blast-radius section in the approval dialog for delete, rollout restart, a known scale-down, Pod resize, and Node drain — see Preview impact before a write for how it appears. Only resolved edges are traversed, and each action follows a fixed, representative relation set rather than the graph's full catalog:

Action	Representative relations followed
delete / rollout restart	owned_by, managed_by, routes_to, uses_config
known scale-down	owned_by, managed_by, selects, routes_to
drain	scheduled_on

An unresolved reference inside that set is reported as a warning rather than silently skipped. The walk is bounded to 3 hops and 50 resources — much tighter than the graph view's own caps — and every count becomes a lower bound (N or more) once coverage, a UID mismatch, or a traversal cap makes the true total unknowable. The section is advisory: it never claims a write will fail or succeed, only what the snapshot found.

Three caveats apply to the scale-down preview in particular:

• PDB (PodDisruptionBudget) rules are not evaluated — the graph records the poddisruptionbudget relation, but whether the budget would gate the actual eviction is determined by the API server at runtime, not here.
• HPA (HorizontalPodAutoscaler) reconciliation is not evaluated — a scale-down you preview may be overwritten by the HPA's next control loop if a conflicting target replica count is in effect.
• StatefulSet PVC retention policy (persistentVolumeClaimRetentionPolicy) is not evaluated — PVC fate on scale-down depends on that policy and the storage class, neither of which the blast-radius walk examines.

Deliberate limits

korvid never renders an unrestricted, cluster-wide relationship graph: a snapshot is always scoped to one selected root, one namespace (or all namespaces if you pressed 0 first), and the numeric caps below.

Limit	Default	Applies to
max_resources	10,000	Resources fed into the graph across every listed source
max_edges	50,000	Joined edges kept in the graph
max_depth / max_nodes	5 / 500	Hops and resources visited by the d expansion
max_target_lists	32	Total relation-target LIST requests per snapshot
max_concurrency	4	Concurrent LISTs the snapshot loader runs at once

Every cap is deterministic (ordered, never API-response-order dependent) and disclosed: exceeding one adds a capped coverage record rather than silently dropping data.

Relationship extraction is also metadata-only by construction: it reads only reference names, never a Secret's data/stringData, a literal env[].value, or a container's command/args. Secrets are read through Kubernetes' PartialObjectMetadataList representation, so the API response itself carries no Secret contents to retain — if a cluster cannot serve that representation, the Secret source fails visibly in coverage instead of falling back to a full-payload LIST. Secret values stay masked behind the Secrets view's own pipeline; this view has no path to them at all.
